125 Series Shoe-Guard
(125mm Width)

Heavy Duty Dutile Iron Grating - E400 Loading (AS3996)

Load Tested by Opus International Consultants Ltd. Albany Laboratory (See Result)

HEEL-GUARD" COMPLIANT

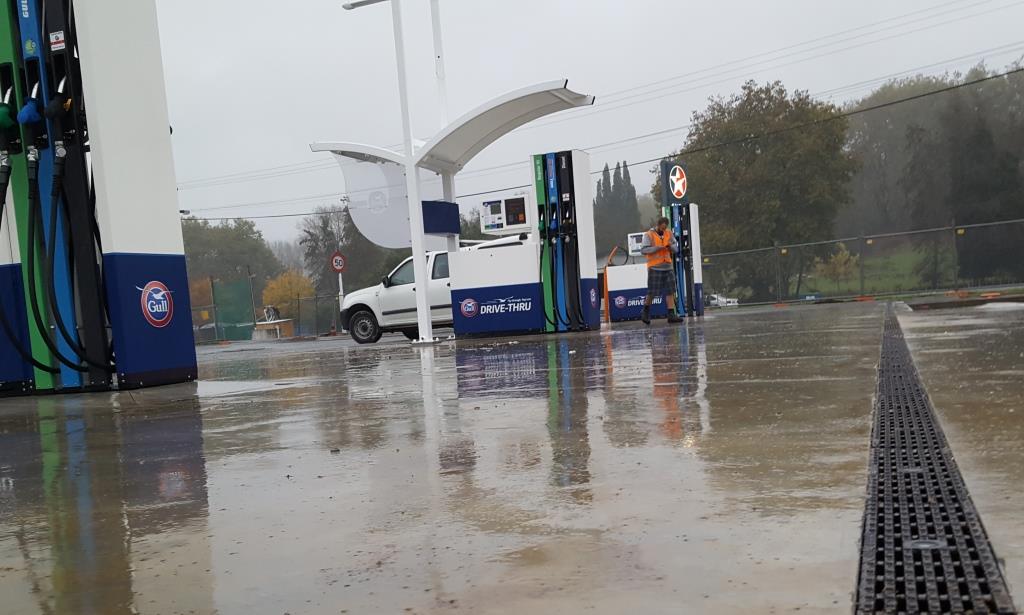

Photo of the 125 system

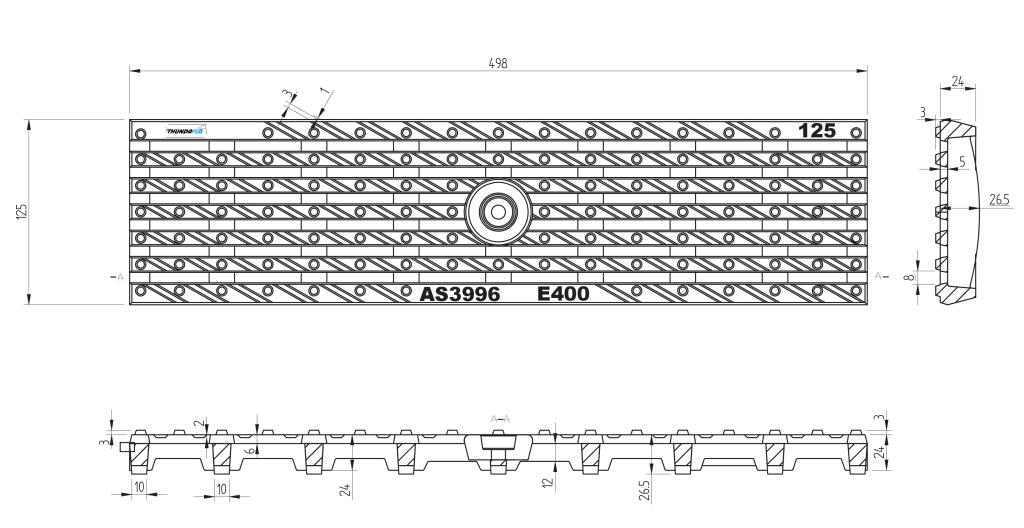

Diagram of 125 Shoe-Guard GratingDiagram not to Scale

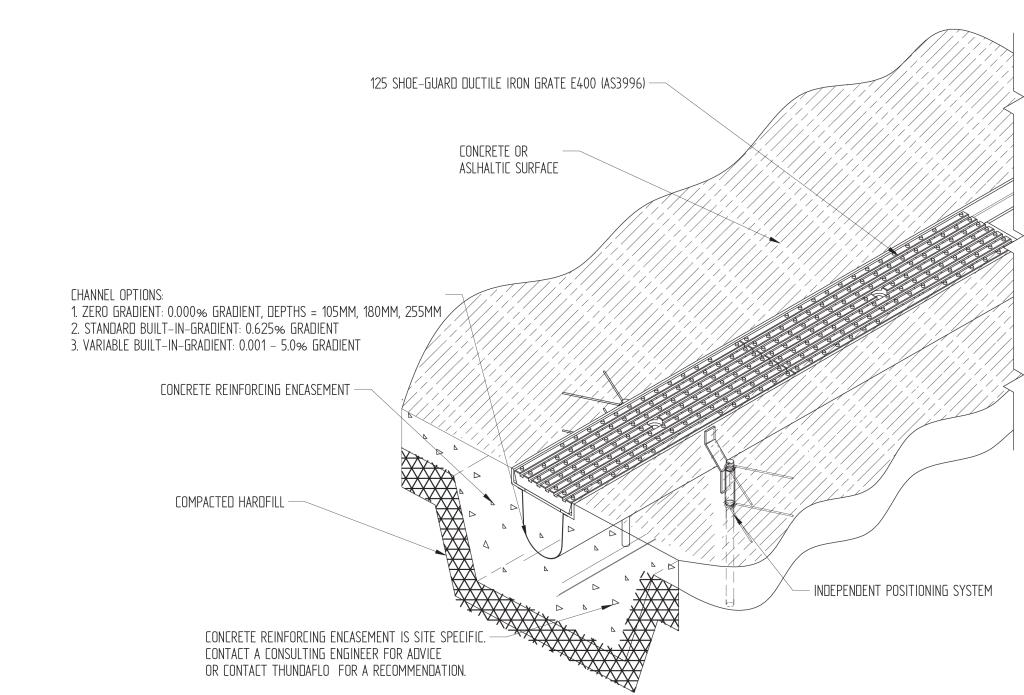

Iso-Metric Diagram of 125 System

Diagram not to Scale

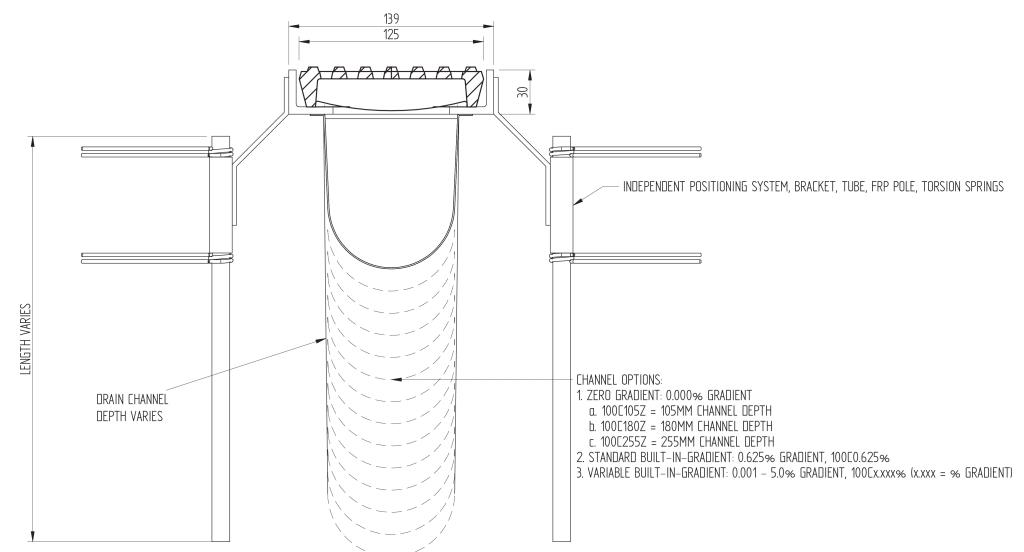

Profile Diagram of 125 SystemDiagram not to Scale

Channel Flow Rates

Grating Flow Rate

Files

PDF :All Views
