200 Series

End Caps (Shallow End) are provided

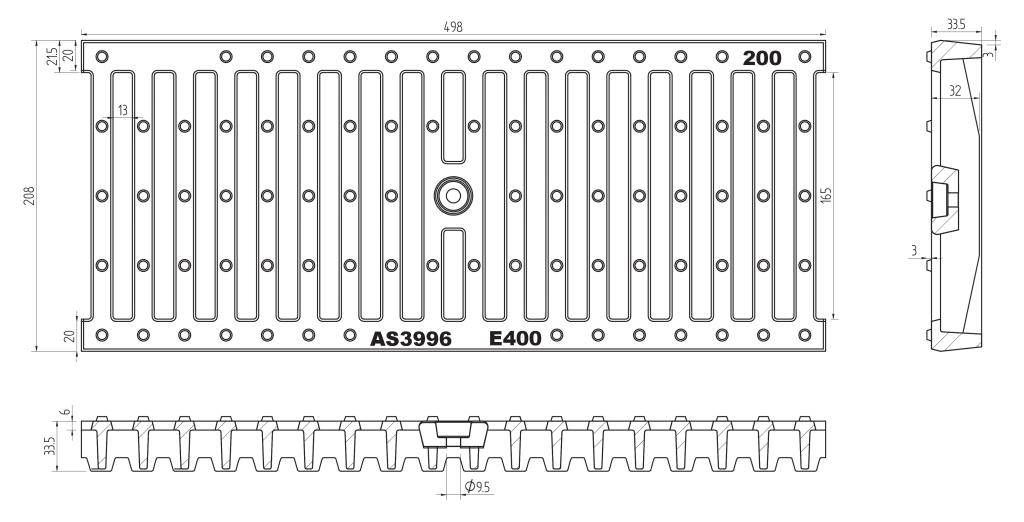

Diagram of 200 Cross-flo Grating

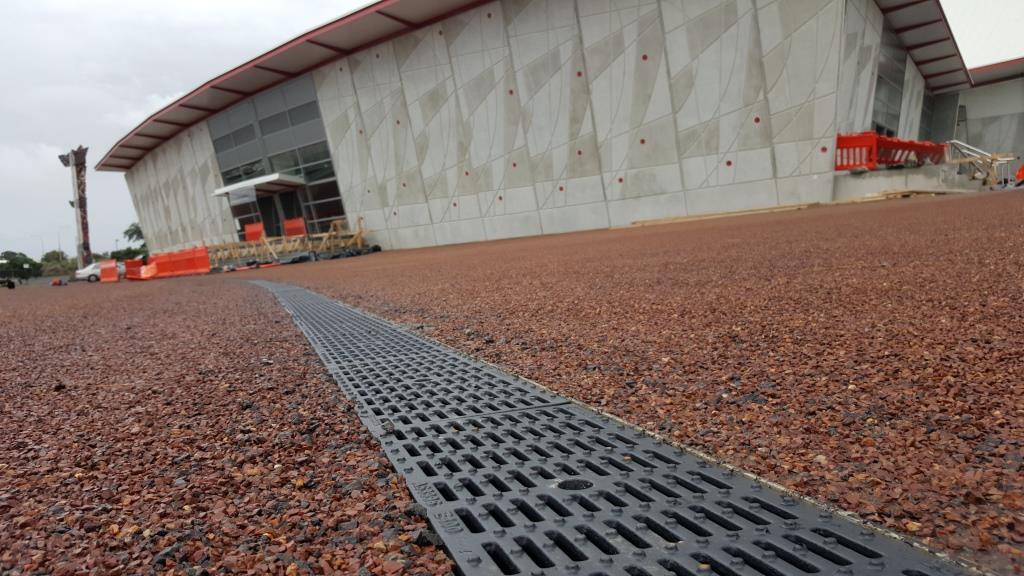

Photo of Cross-flo Grating

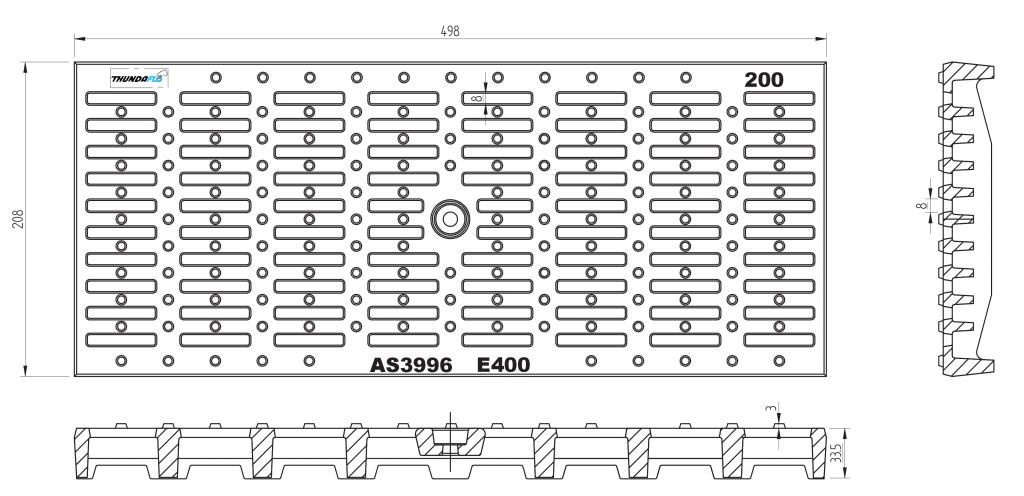

Diagram of 200 Shoe-Guard Grating

Diagram not to Scale

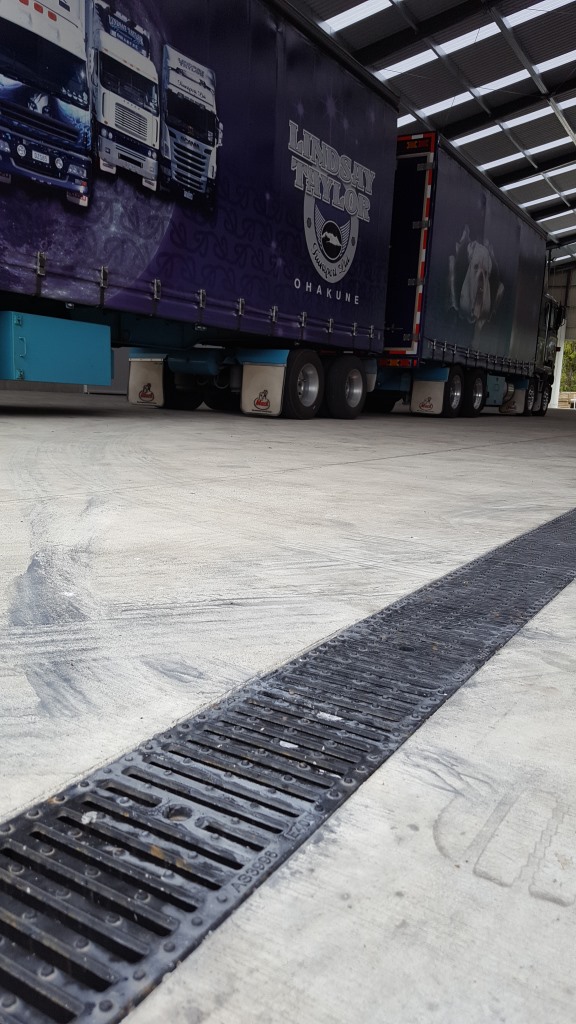

Photo of Shoe-Guard Grating

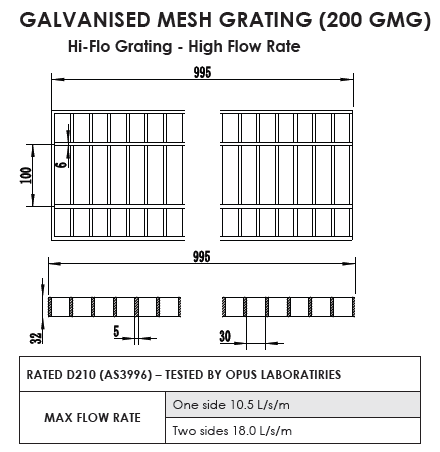

Galvanised Mesh Grating

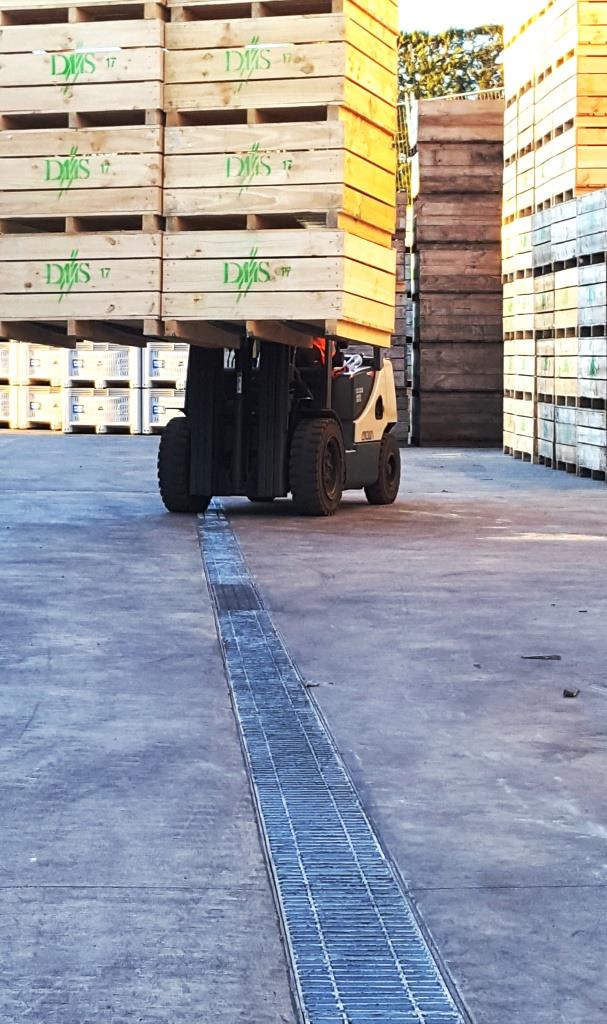

Photo of Galvanised Mesh Grating

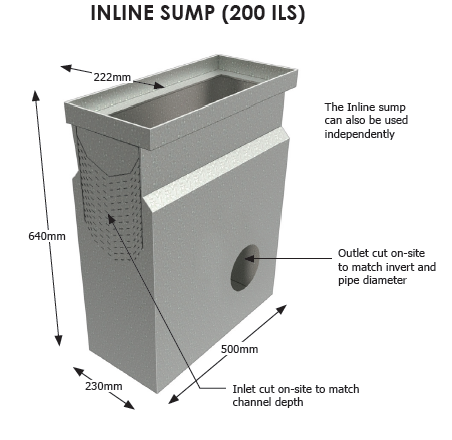

Cut the hole for the outlet with a hole saw and if required seal the gap between the hole and outlet pipe with:

  • Silicon Sealant
  • Denso Tape
  • UniSeal™

...prior to the concrete pour.

The UniSeal™ can be purchased from www.uniseal.co.nz


Next: 300 series
