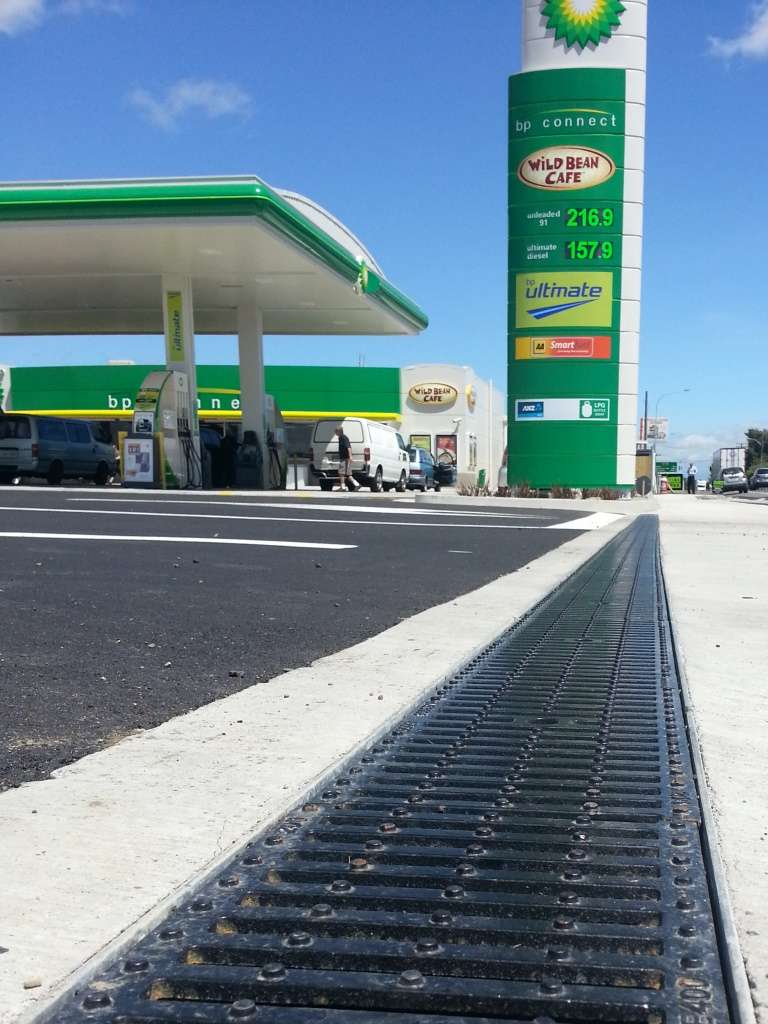

BP Bulls - Installed 2013, Cross-Flo grating with 0.625% built-in-fall

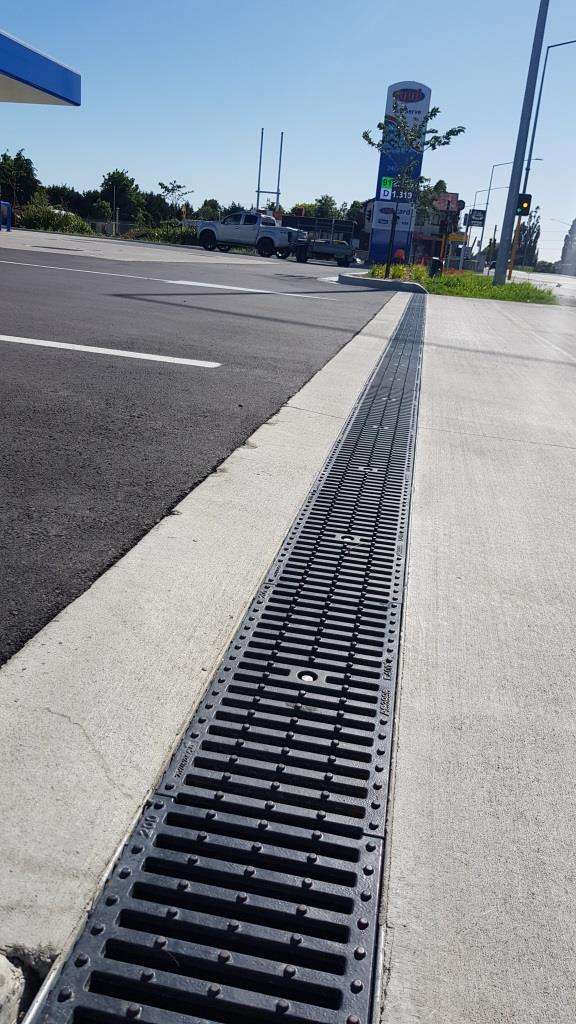

Entranceway at NPD Islington - This is a typical entrance-way: 200 Series with Torrent channel which has super steep built-in-fall to flush away any debris. The grating is 200 series Cross-flo rated at Class E400 (AS3996).

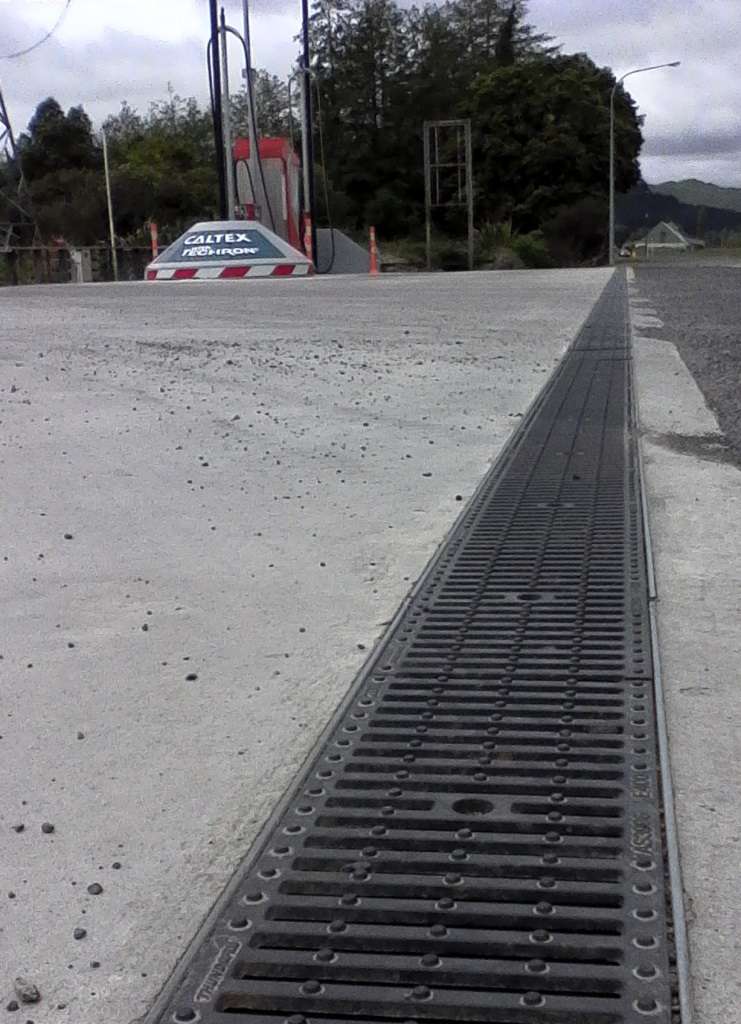

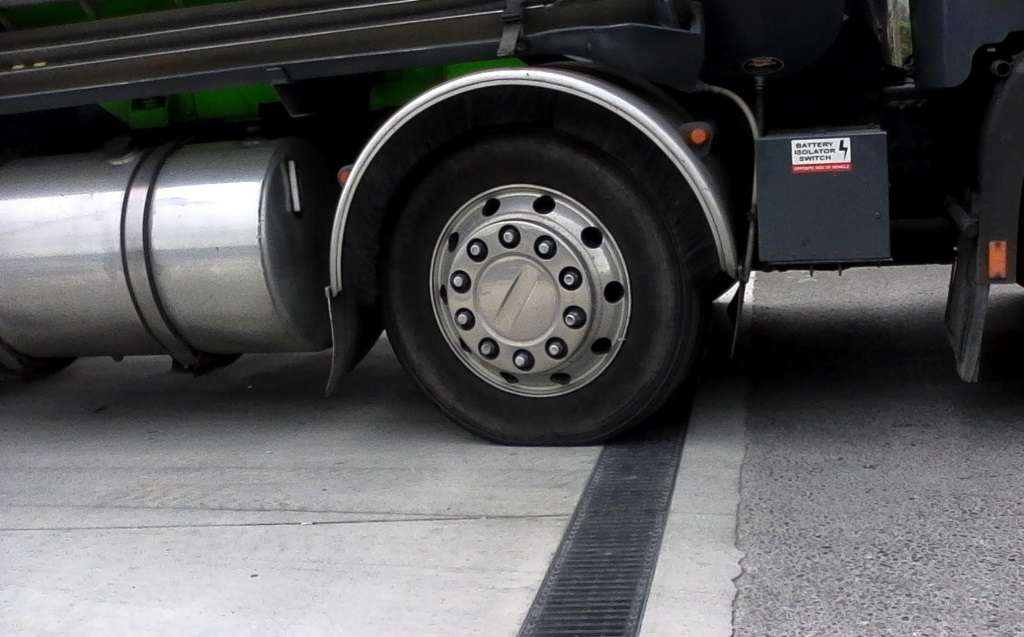

Caltex Mananui truckstop - this drain was installed in January 2014 and is subject to extreme dynamic loading as the trucks enter the site at an angle under brakes. Thundaflo excels under these conditions as it is literally built like the proverbial brick thing

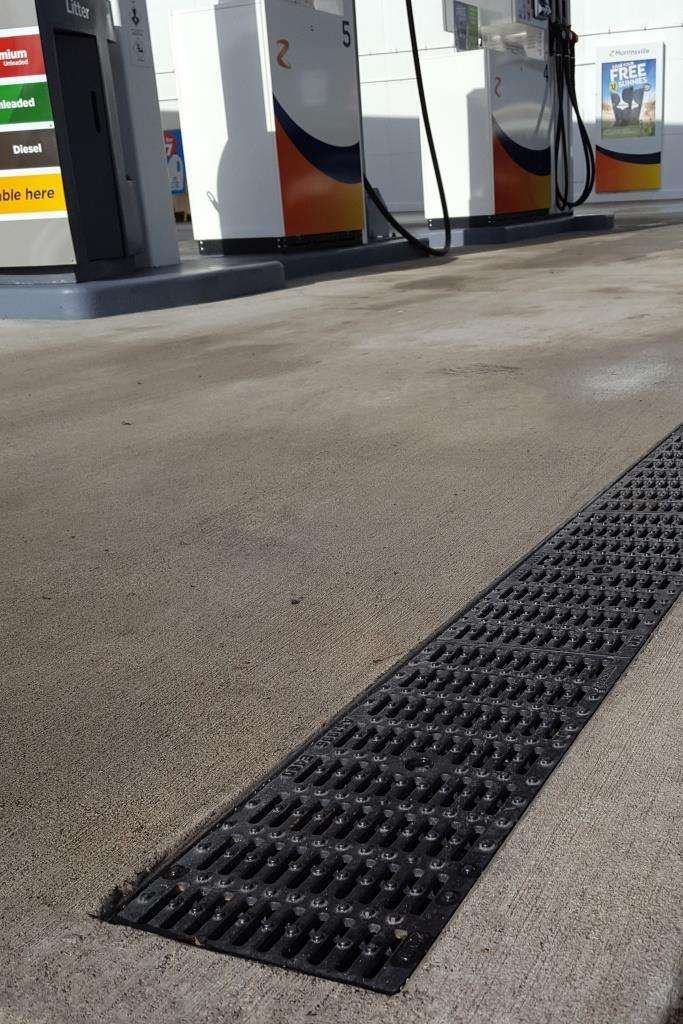

Z Energy Morrinsville, 200 Series Shoeguard

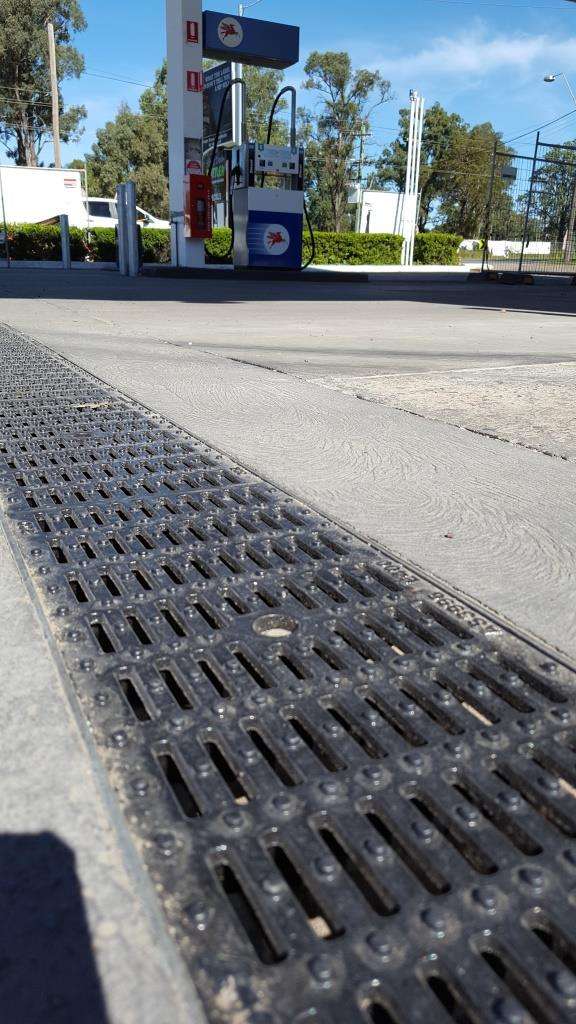

Mobil - West Sydney. Distributed by SPEL Pty Ltd. http://spel.com.au/products/spel-thundaflo/

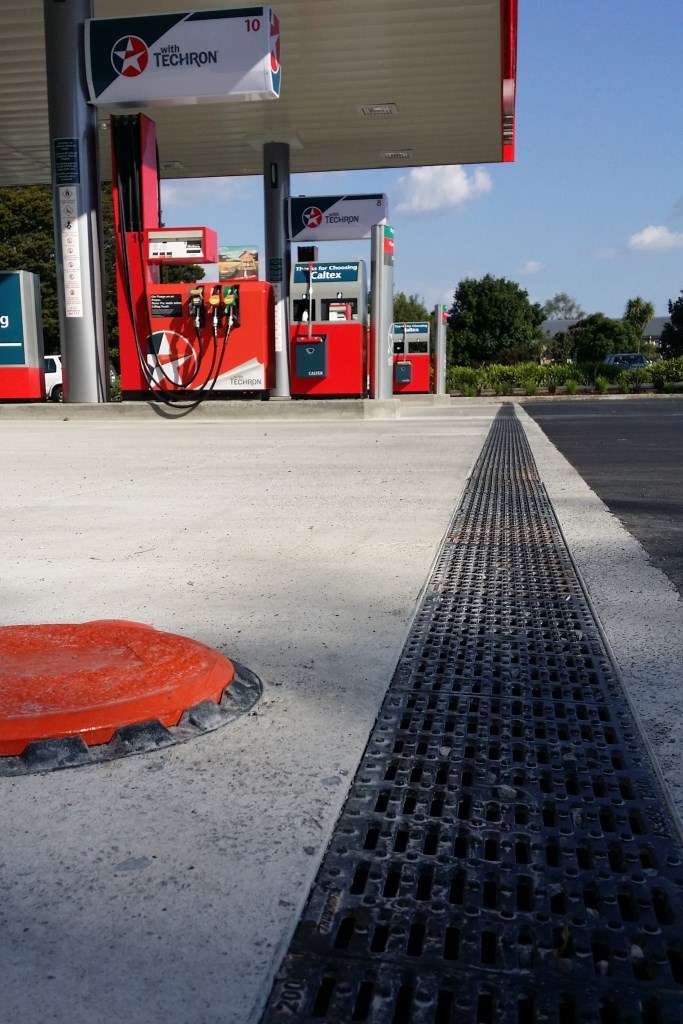

Caltex Hillcrest Hamilton, 200mm width Shoe-guard (Class E400) with built-in-fall.

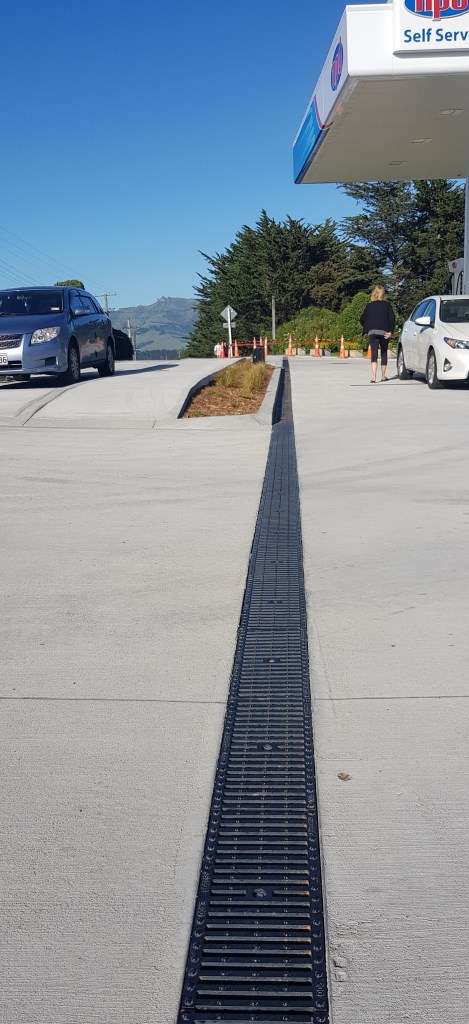

NPD Diamond Harbour - A very long section across the front of the forecourt

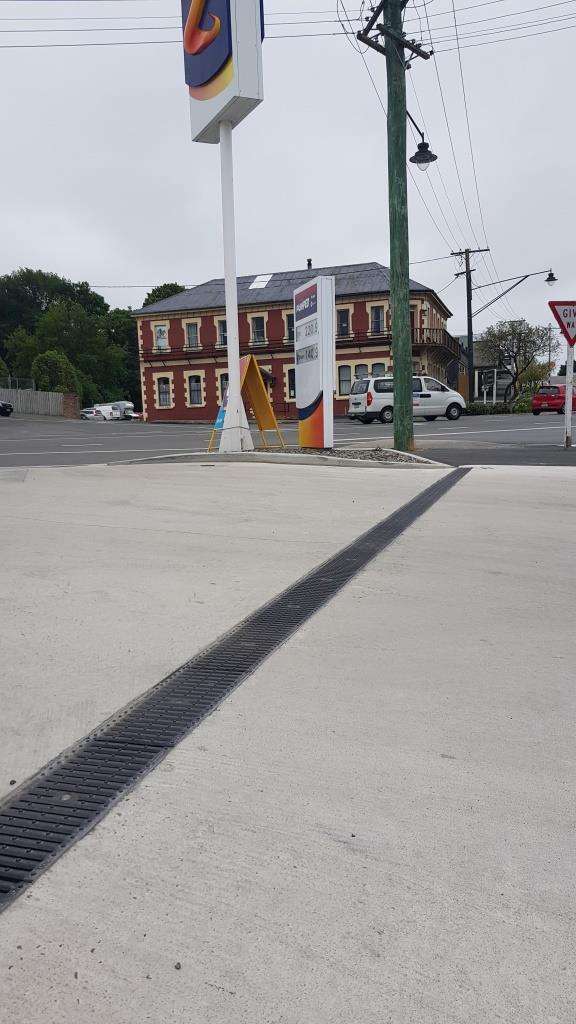

200 series with cross-flo grating at Z Energy, Palmerston, South Island.

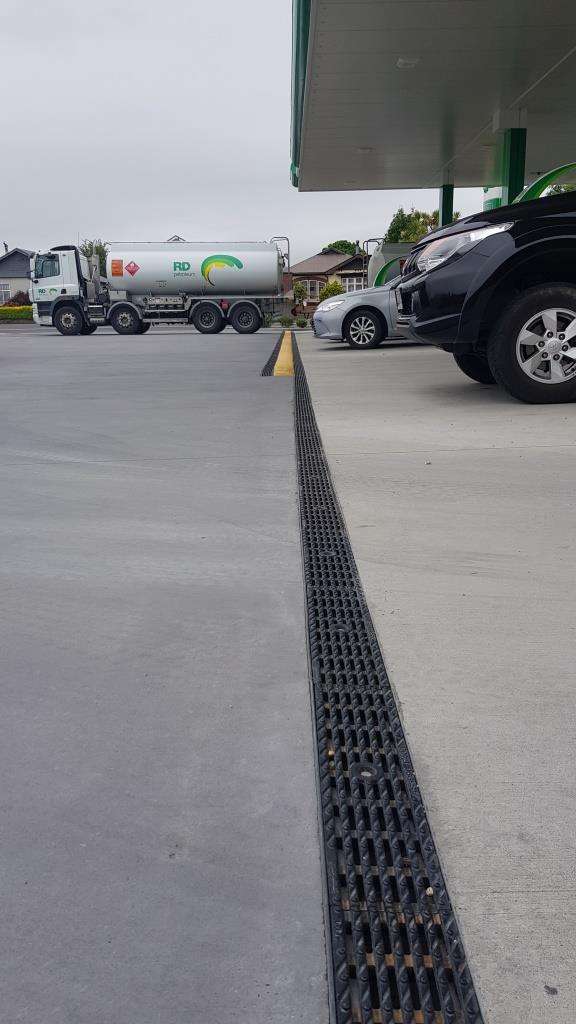

125 Series - RD Petroleum

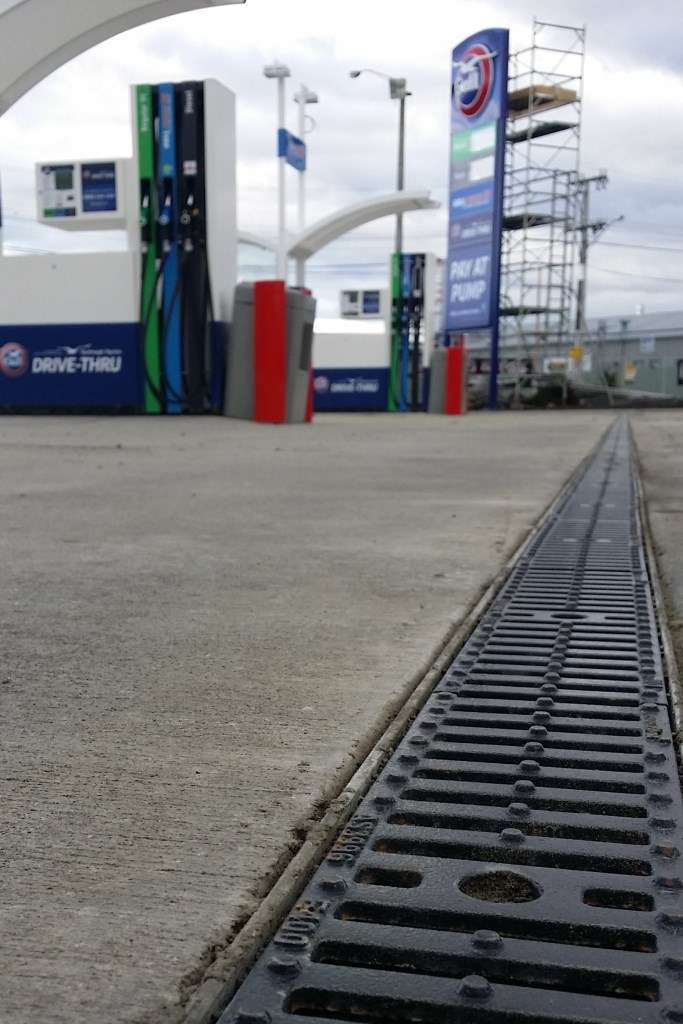

Gull Hastings - Straight as a dye Note the 5mm thick frame, this is the key to a robust channel drain and where many others fail

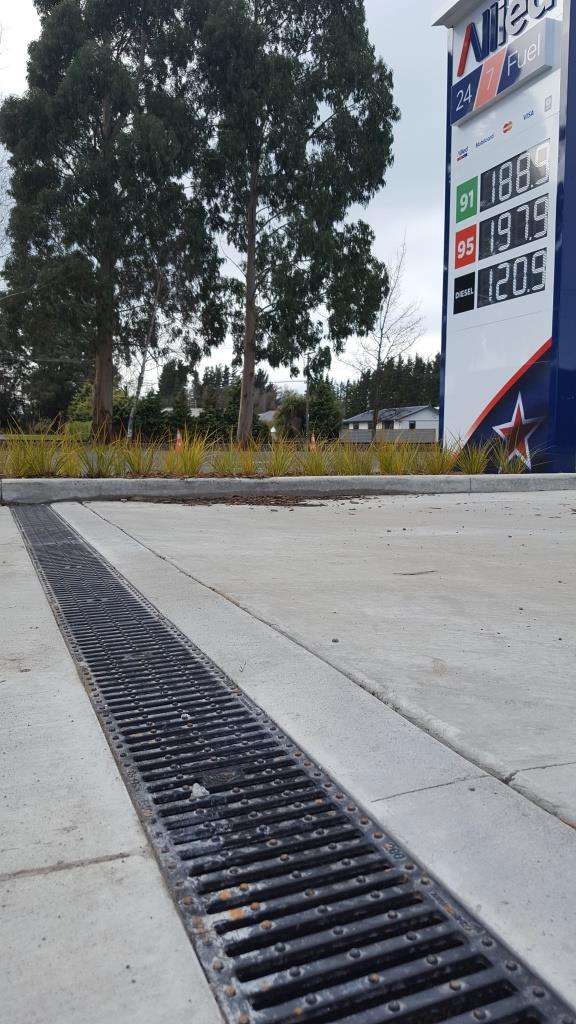

Allied Fuels Sheffield 200 Series River (BIF) with E400 Cross-flo Grating

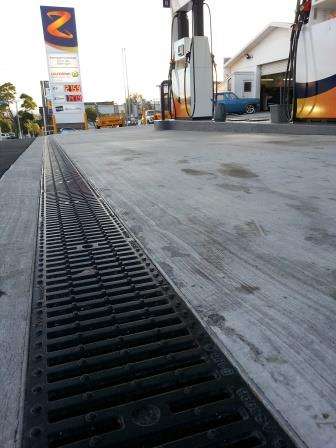

Z Energy Ponsonby, Auckland: THUNDAFLO C170F (170mm wide channel with built in fall) & Cross-flo (G208CF). This drain required high flow rate on the sloping site.

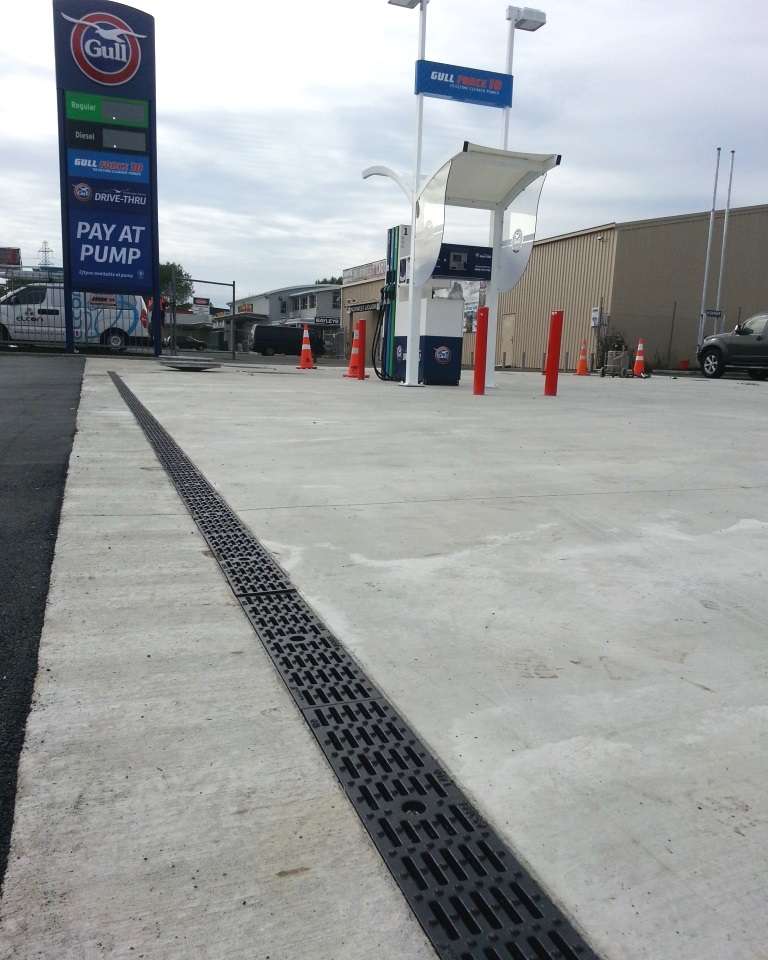

Gull - Kumeu: THUNDAFLO 100mm Shoe-guard with built-in-fall

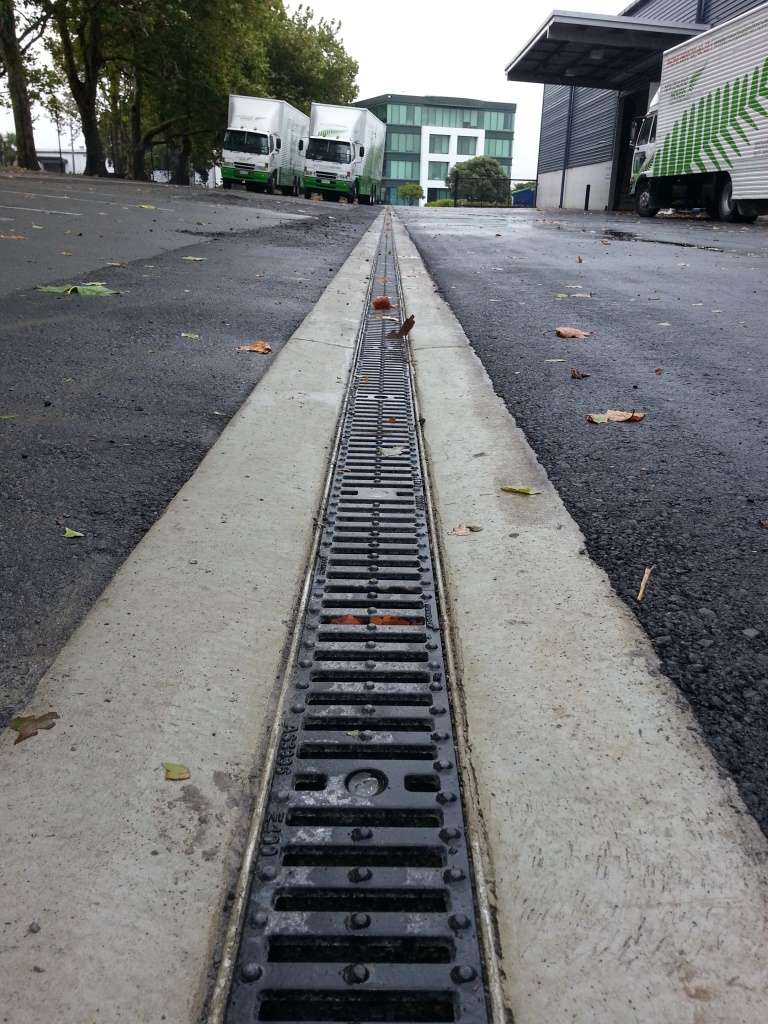

Niall Burgess Road, Auckland: THUNDAFLO C100F (100mm wide channel with built in fall) & Cross-flo grating. This drain required high flow rate and high strength to withstand forklift solid tyre point loading.

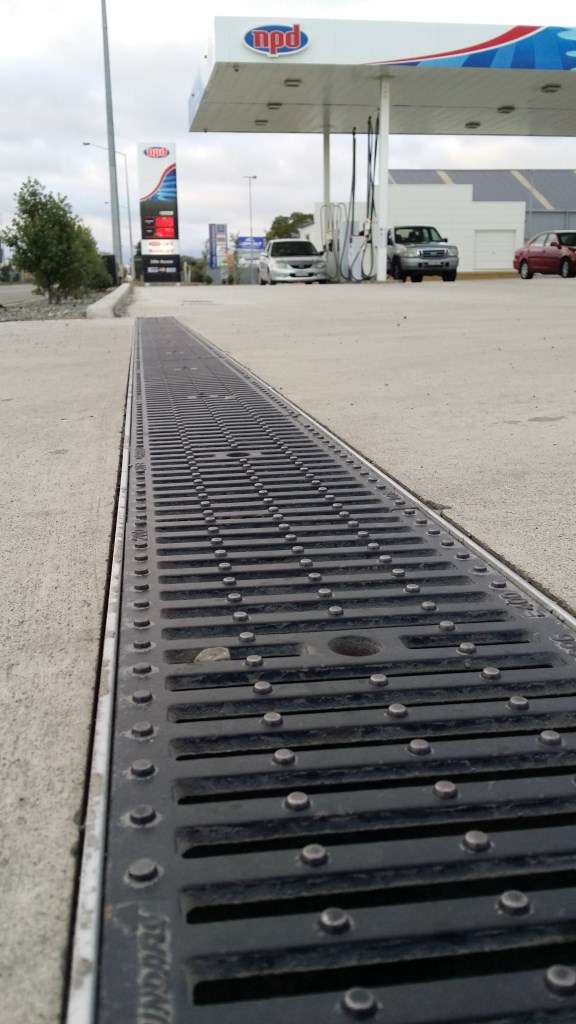

THUNDAFLO 200mm width cross-flo on the entrance of NPD's service station in Christchurch. Note the long length 5mm frame, virtually indestructible and a weak point the many poly-modular drains on the market.

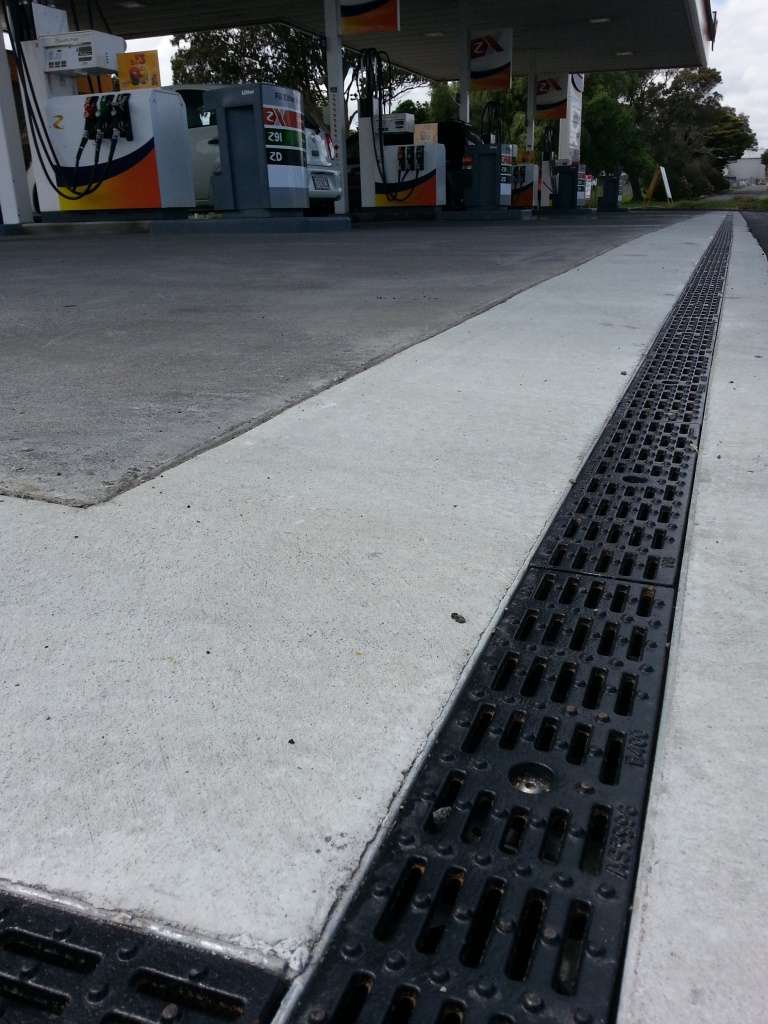

Z Energy - Wiri Station Road, Installed 2013 Pedestrian Safe Shoe-Guard grating with 0.625% built-in-fall

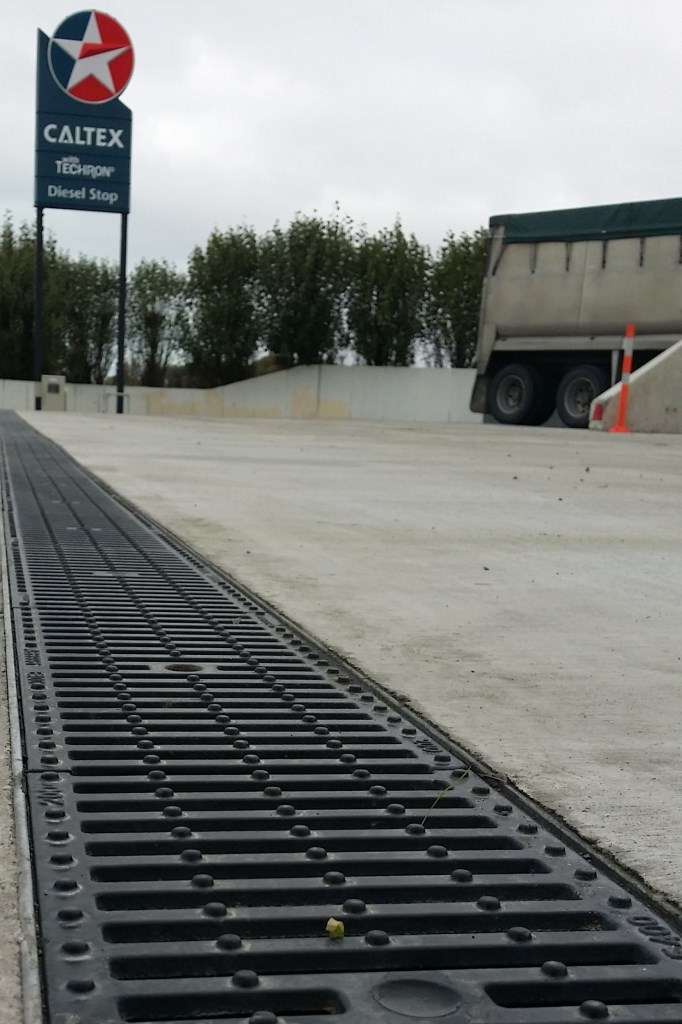

Caltex Pareora Truckstop. Rock solid Heavy Duty 200mm Cross-flo with Built-in-Fall

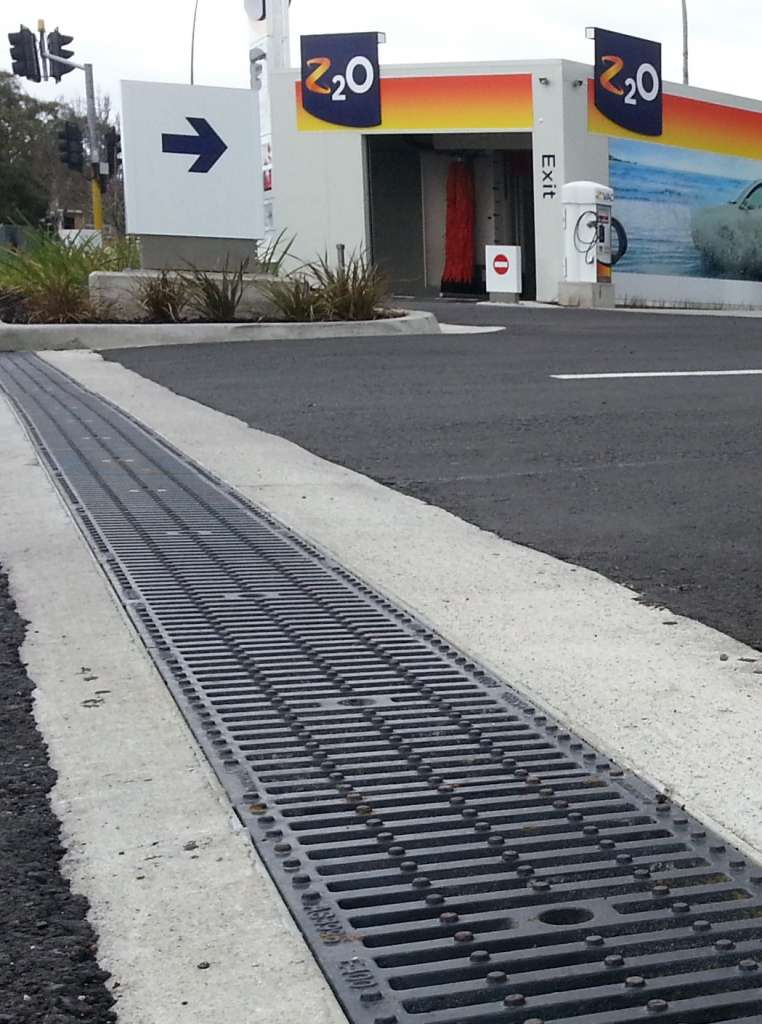

Z Energy, Mill Street, Hamilton: THUNDAFLO C208F with Cross-Flo grating installed December 2013.

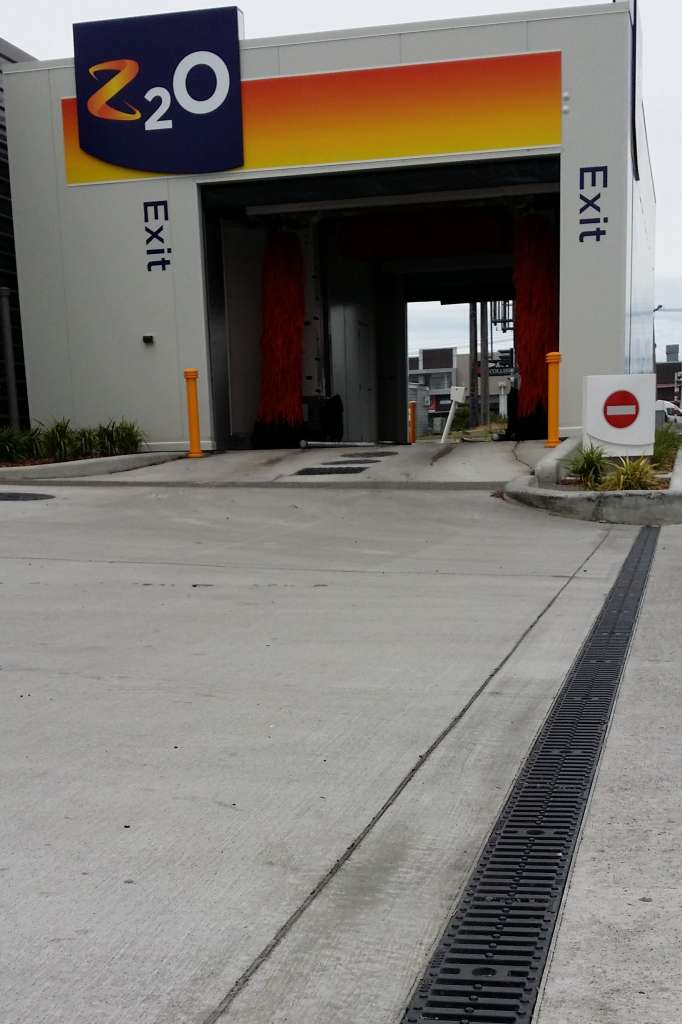

Z Energy Moorhouse Avenue, Christchurch. THUNDAFLO 100mm Cross-flo grating with built-in-fall

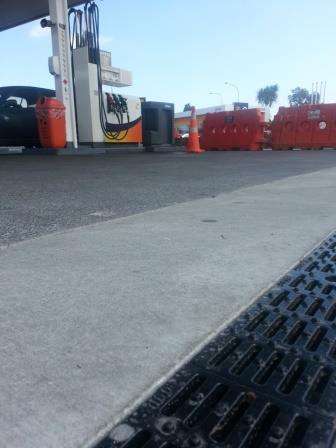

Z Energy Takanini: THUNDAFLO C100F (100mm wide channel with built in fall) & Shoe-Guard grating. Installed in March 2014.

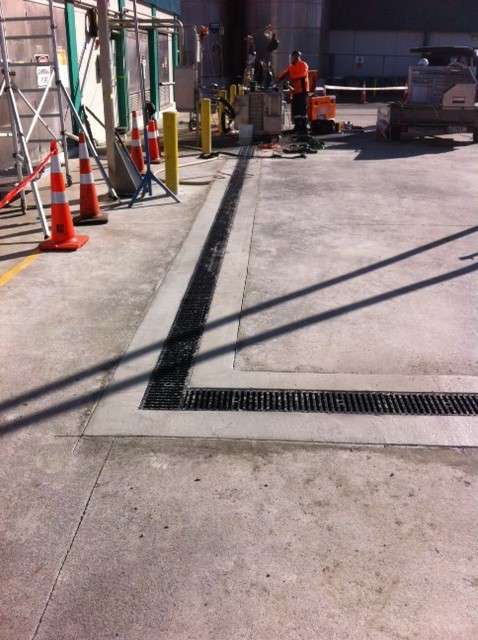

Fontera Hautapu: This photo was taken during installation of THUNDAFLO 200mm Cross-flo being installed to replace a damaged section of drain in a truck loading bay.

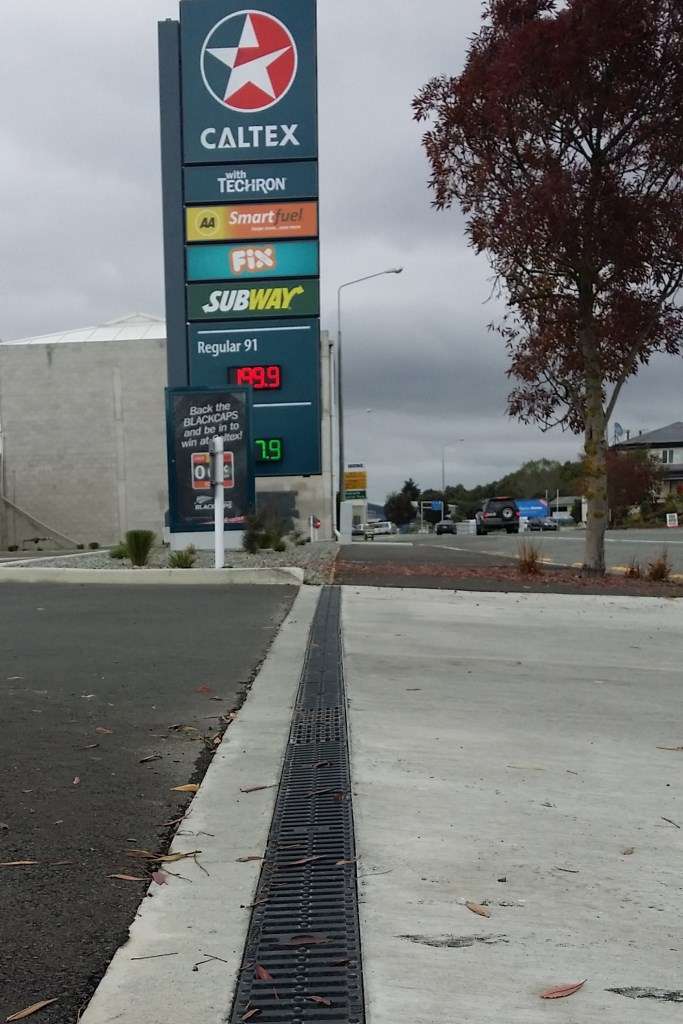

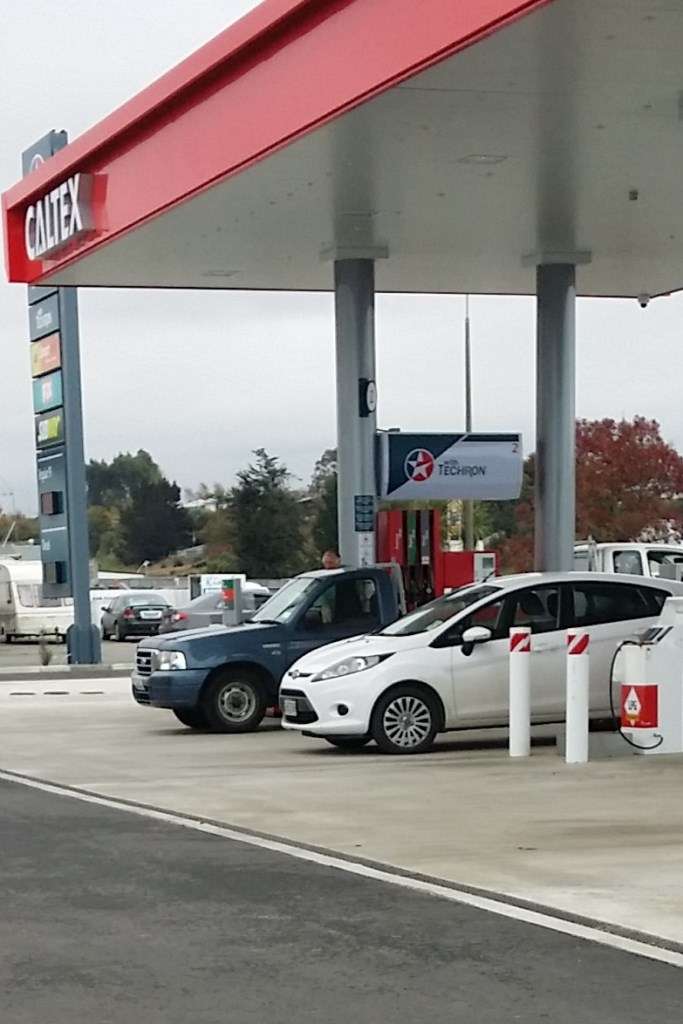

Caltex Timaru. 100mm Width with Cross-flo E400 grating and built-in-fall. Installed 2015

Caltex Timaru. 100mm width with Shoe-guard grating (E400) with built-in-fall. Installed 2015

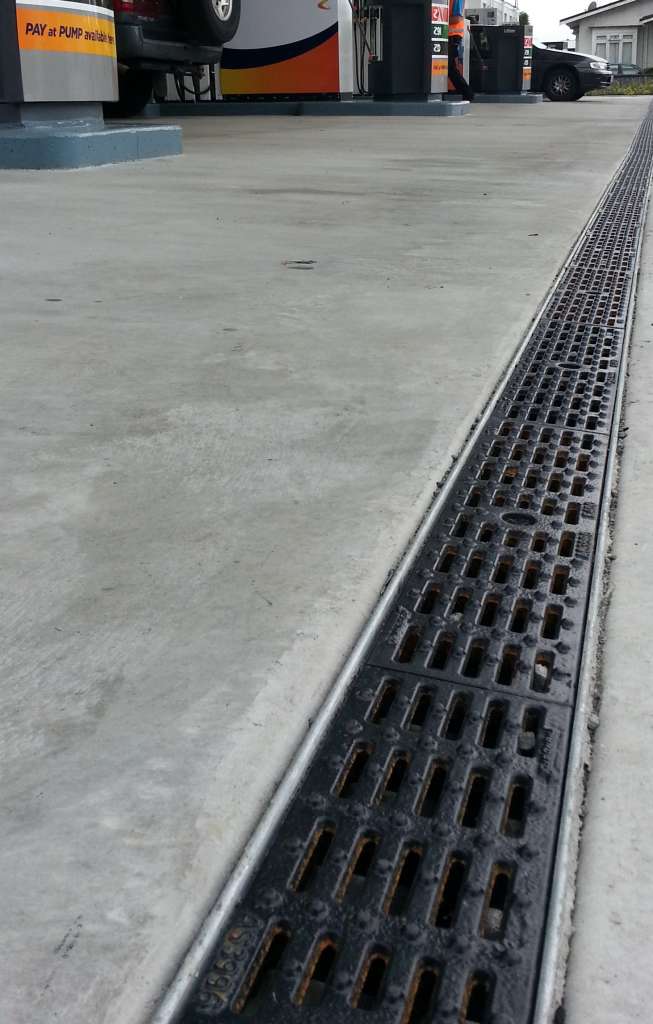

Z Energy forecourt, Mill Street, Hamilton: THUNDAFLO C100F (0.625% built-in-fall) with E400 Ductile Iron Shoe-Guard installed December 2013.

100mm Width Cross-flo grating (rated E400) with zero gradient. This grain was installed between a Z Energy service station forecourt and industrial estate and is subject to very heavy use.

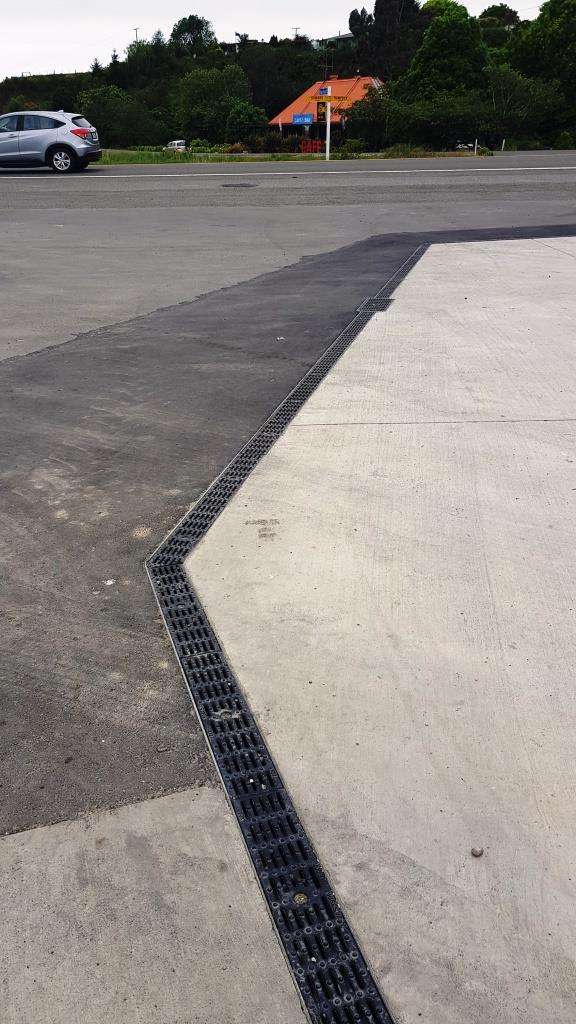

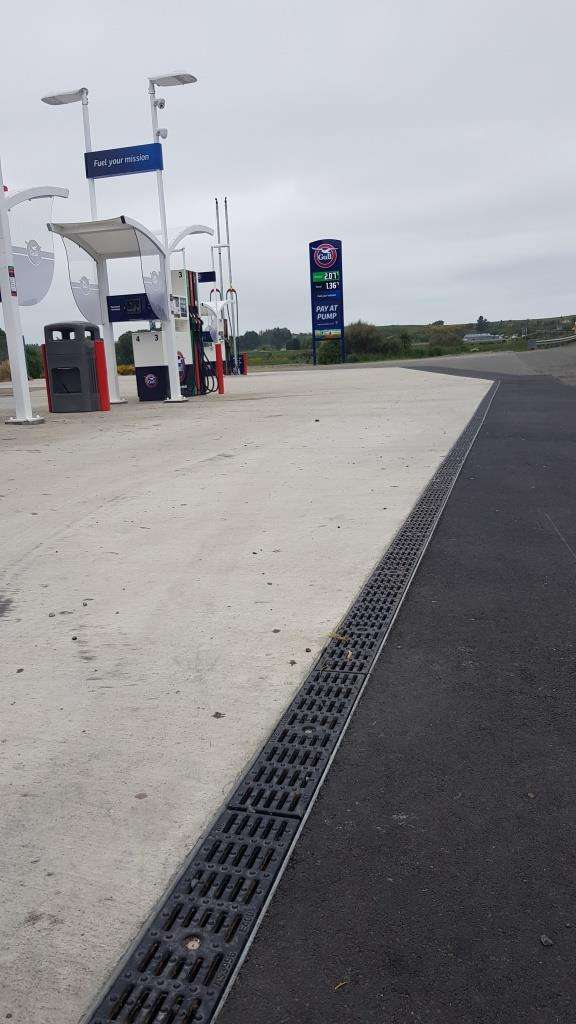

Gull Maheno, South Island New Zealand. Gulls first South Island site surrounded with Thundaflo.

Gull Maheno.. surrounded by Thundaflo

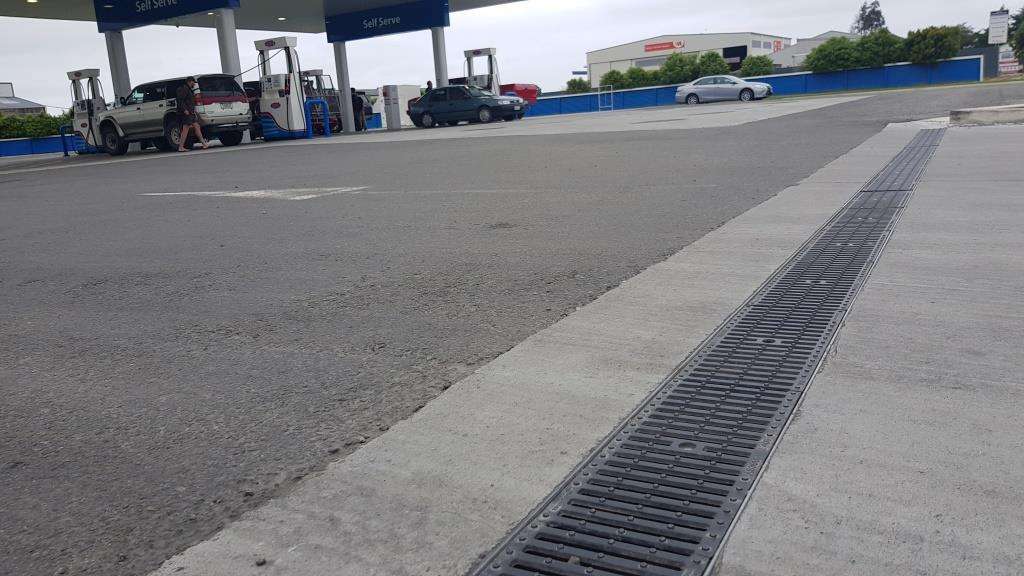

Entranceway at NPD Oamaru

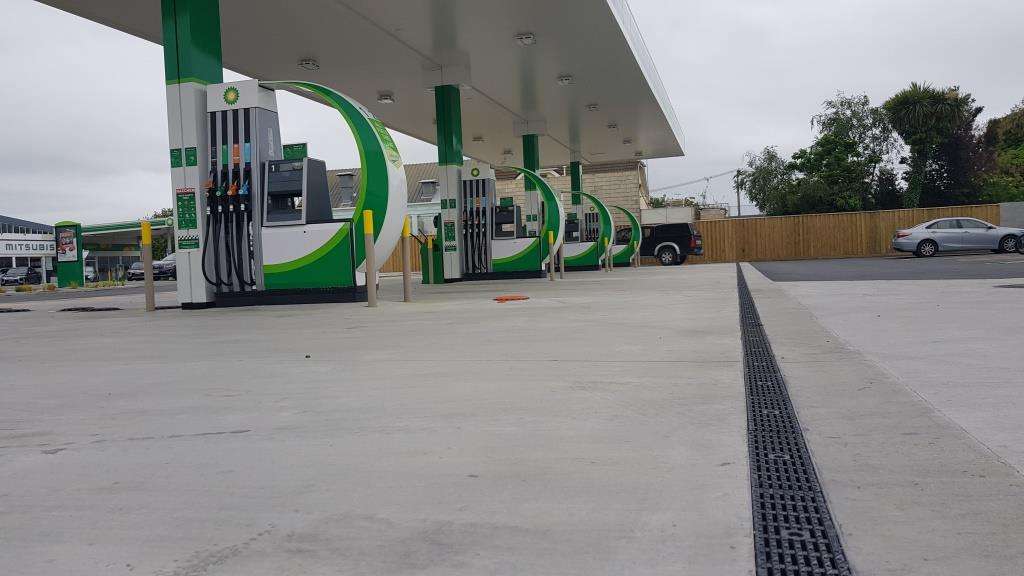

BP Balclthutha - 125 Series, River channel (Built-in-fall) with E400 (AS3996) Shoe-guard grating

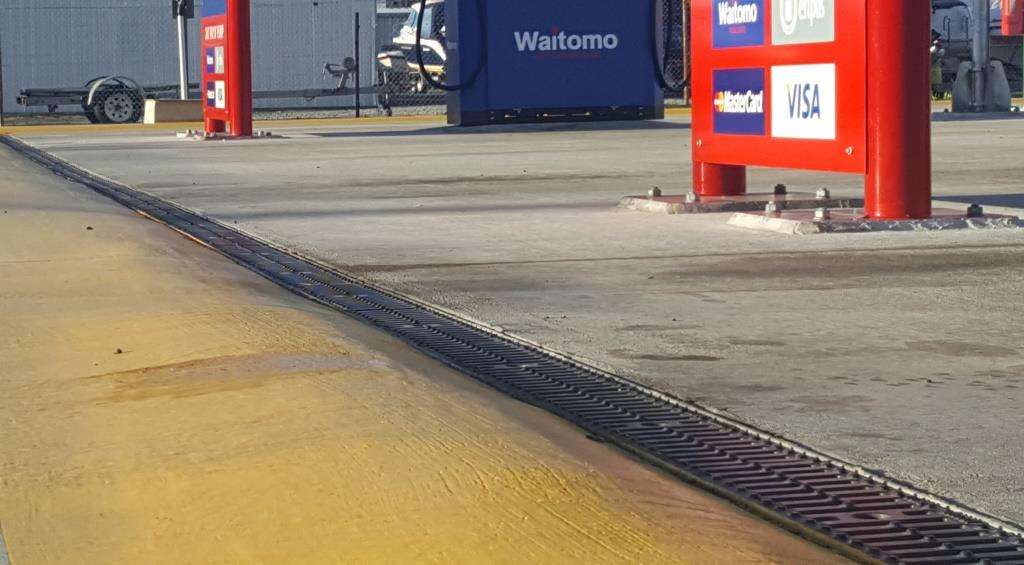

Waitomo Turangi, 100 Series Cross-flo

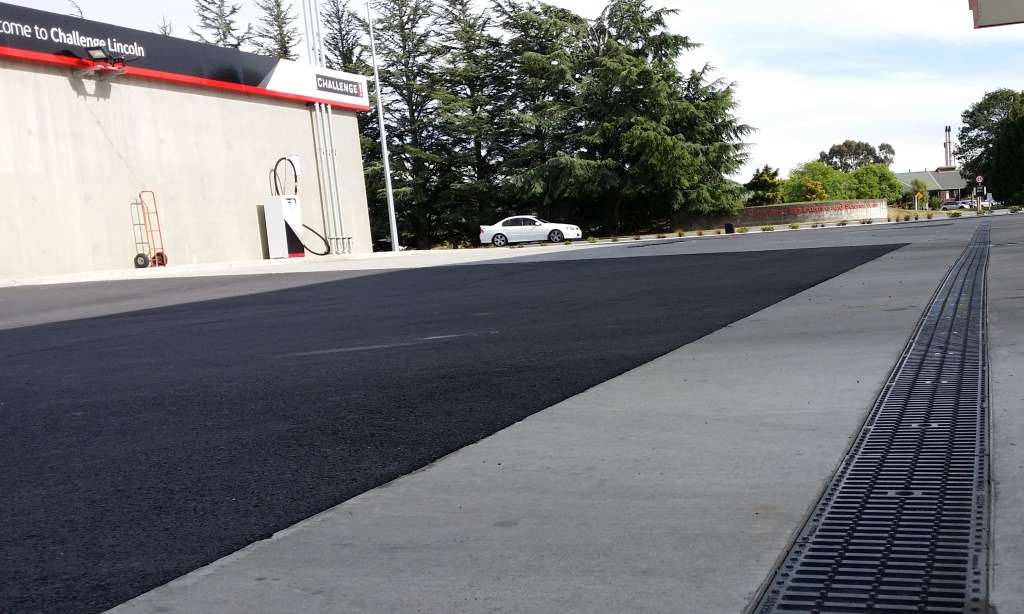

Challenge Lincoln, Christchurch: 200mm Cross-flo with Built-in-Fall

Caltex Mananui truckstop: The THUNDAFLO's system is tested to E400 load rating (AS3996) as tested by Opus Laboratories - Albany, Auckland.

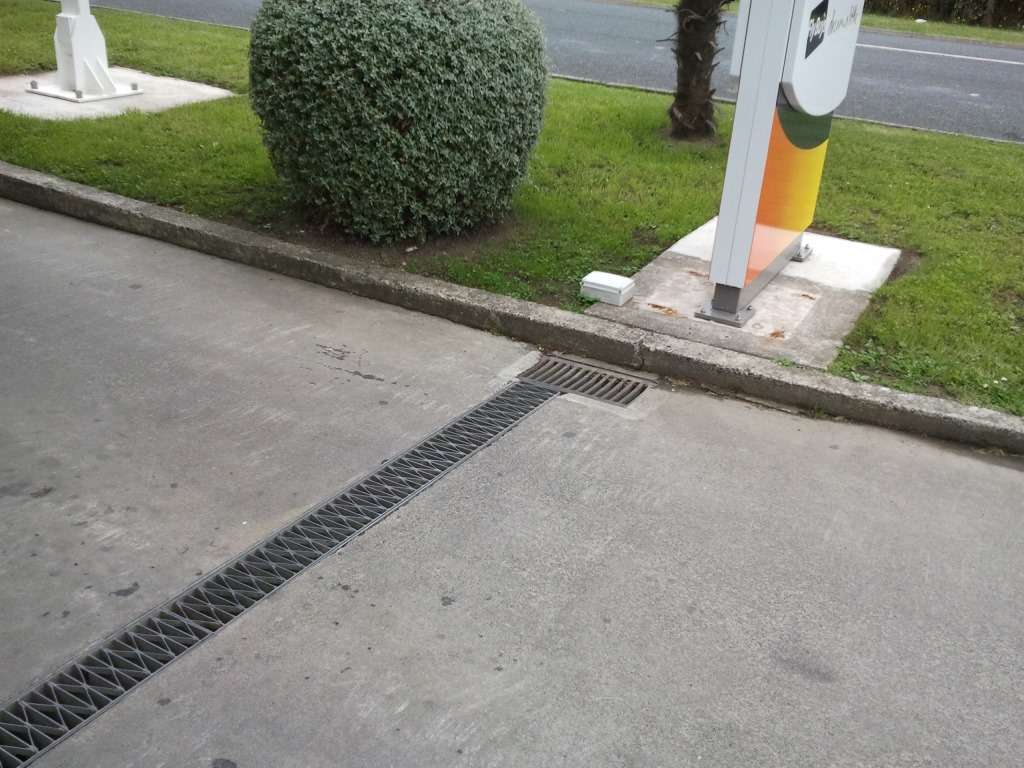

Z Energy - Riverhead, Installed 1997. The original: 17 years later, still as good as the day it was installed

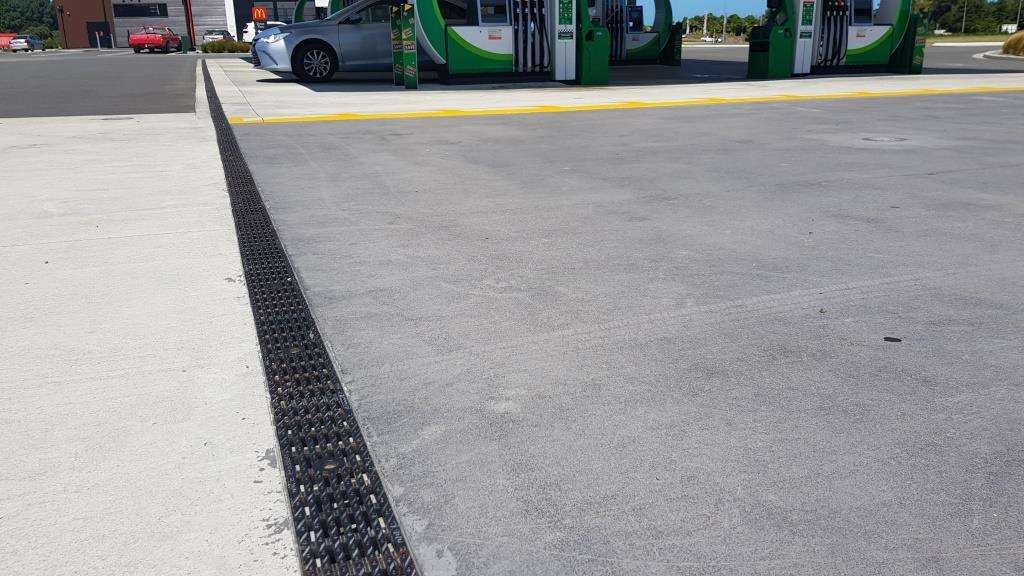

BP Ravenswood, North Canterbury which was installed in 2018.

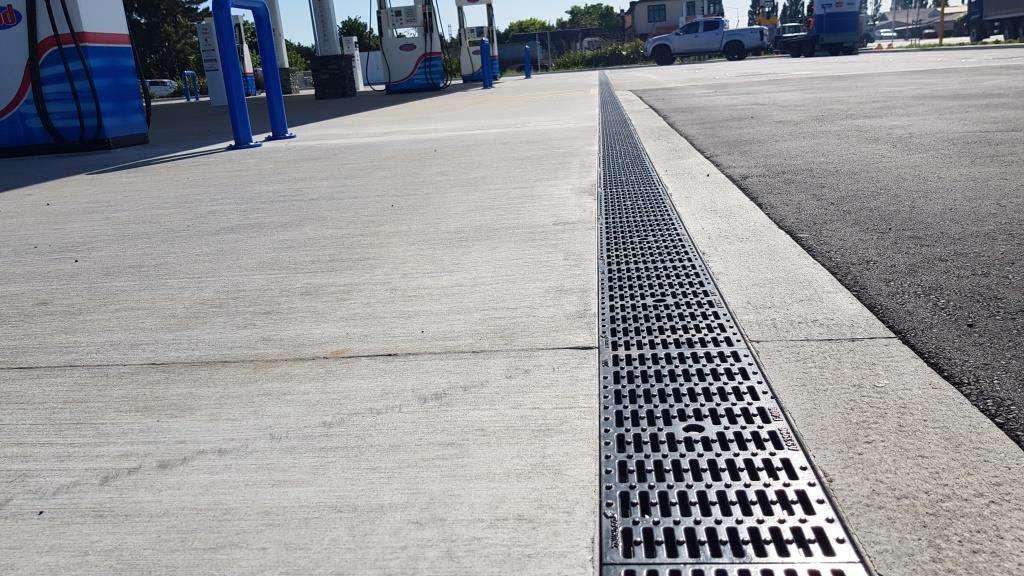

200 Series with Shoe-Guard E400 Grating at NPD Islington - A work of art.

This section of Thundaflo was installed in 2013 before ductile iron grates were available, the photo was taken in November 2019. It's still rock solid.

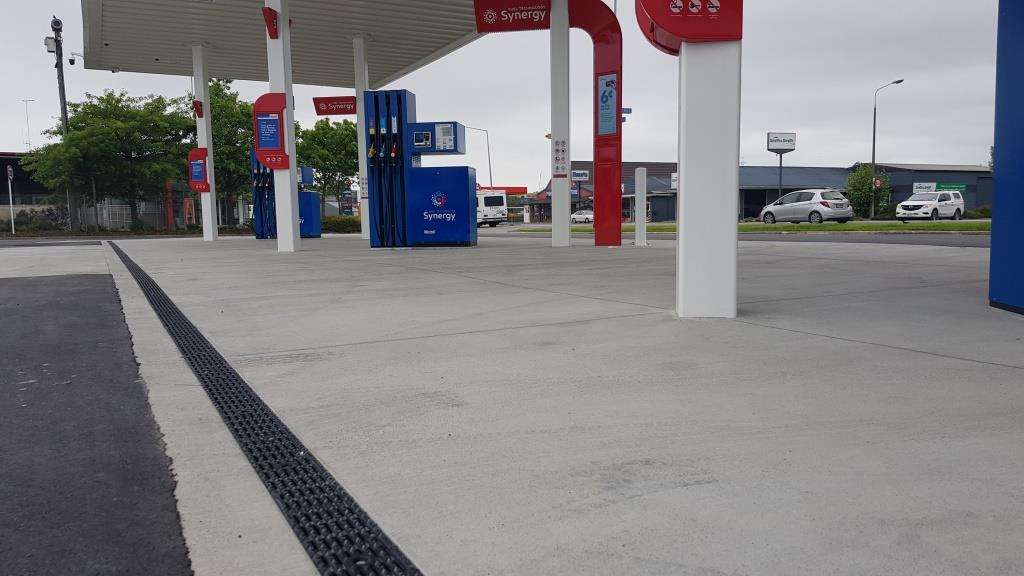

Mobil Energy - Washdyke. This section of Thundaflo was a real challenge in terms of channel design. Half the section we literally had to drain uphill; this was achieved by using Thunda-Torrent which has a supper steep 1.8% gradient. If you look closely you can see upward slope at the far end of the forecourt. On the near section we had to keep the depth of the channel very shallow to stay above existing fuel lines... in this section we used Thunda Zero gradient. For more detail refer to the data sheets in the download section.

Mobil Washdyke
