Angle Joins
To provide on-site flexibility w
e recommend constructing "angles" on site.
Two sections will be supplied with the "corner" sections at zero gradient. The angles are then cut with a grinder.

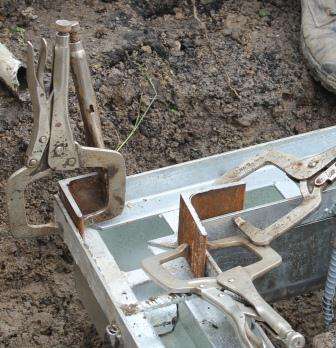

Sections clamped together with small pieces of angle iron.
