200 Series Shoe-Guard
(Actual Width of Grating - 208mm )

Heavy Duty Dutile Iron Grating - E400 Loading (AS3996)

Load Tested by Opus International Consultants Ltd. Albany Laboratory (See Result)

Used Where Higher Flow Rates are Required

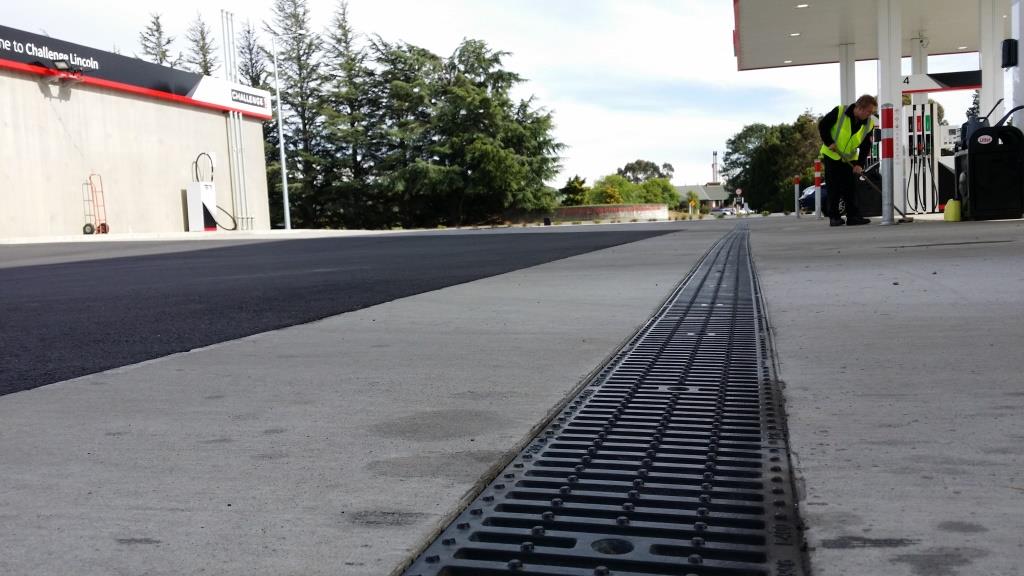

Photo of 200 Cross-flo Grating



Diagram of 200 Cross-flo GratingDiagram not to Scale

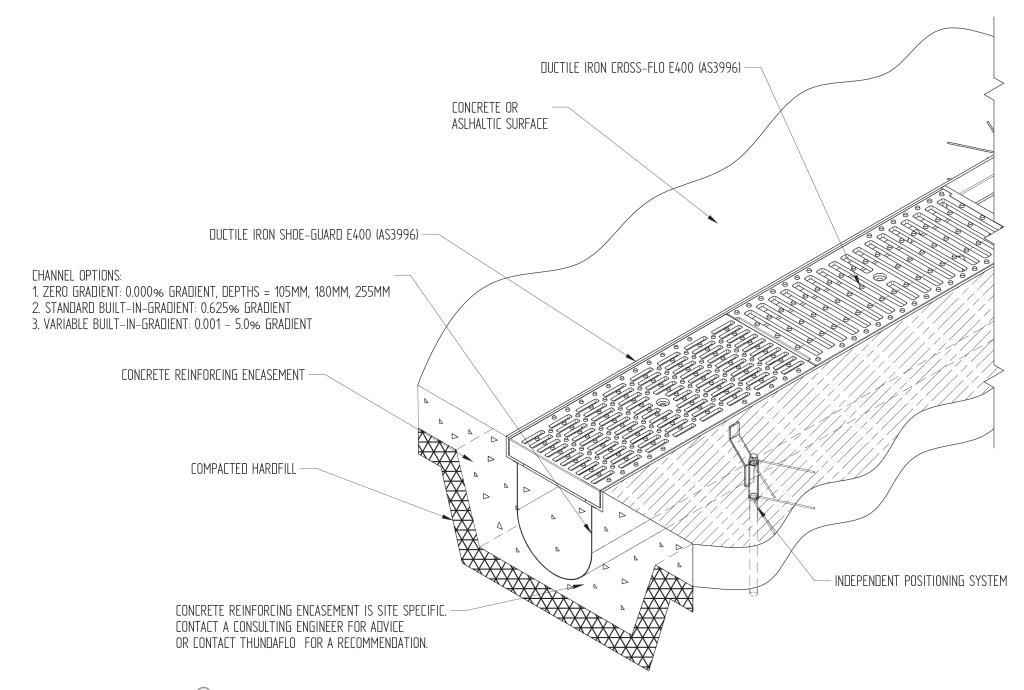

Iso-Metric Diagram of 200 SystemDiagram not to Scale

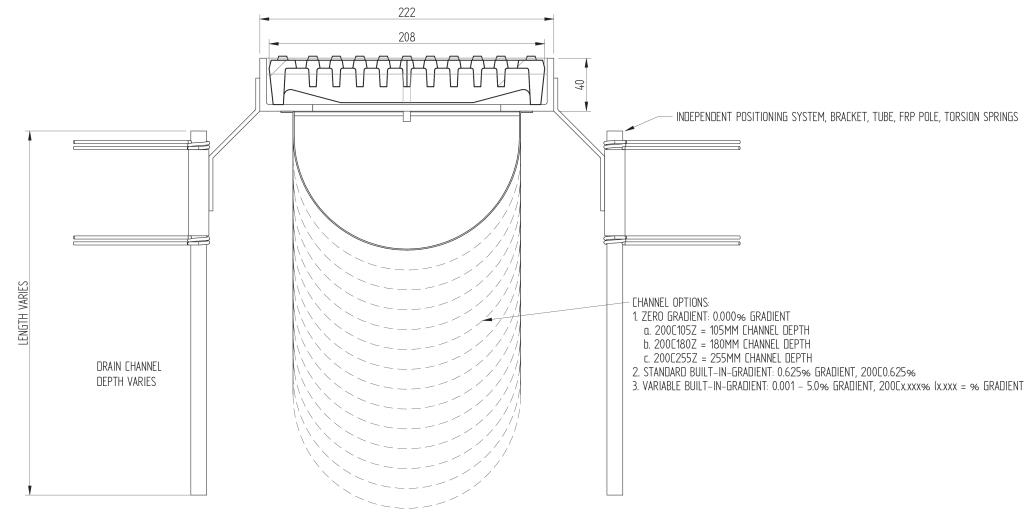

Profile Diagram of 200 SystemDiagram not to Scale

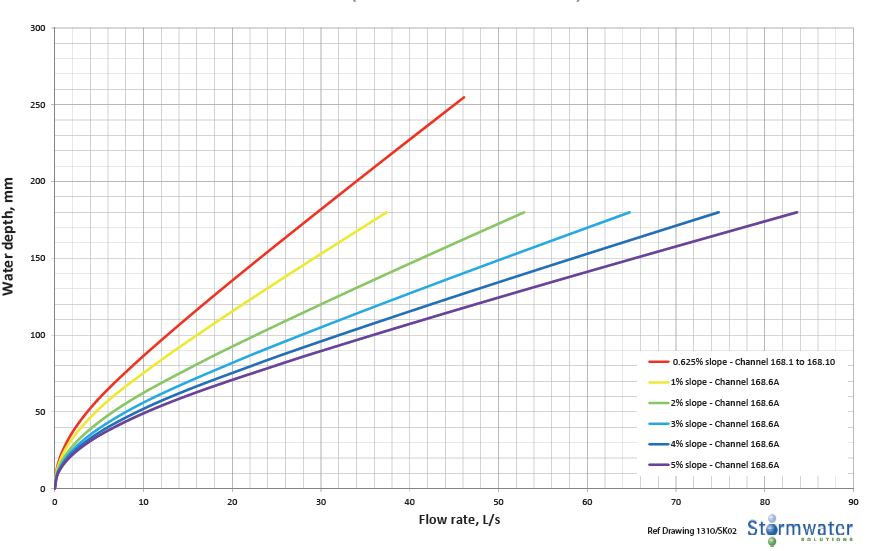

Channel Capacity

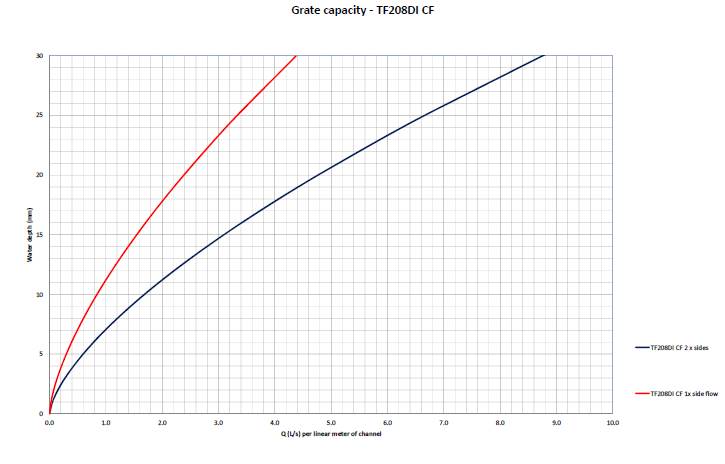

Grate Capacity

































Files

PDF :All Views

DWG Files: Please contact info@thundaflo.com to request these files
